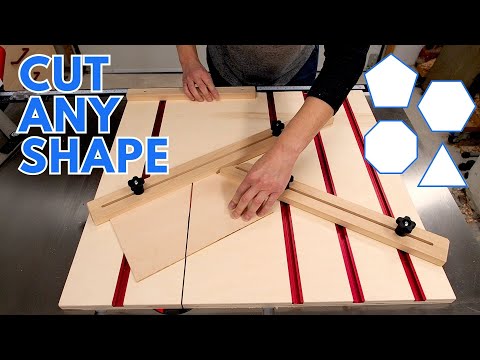

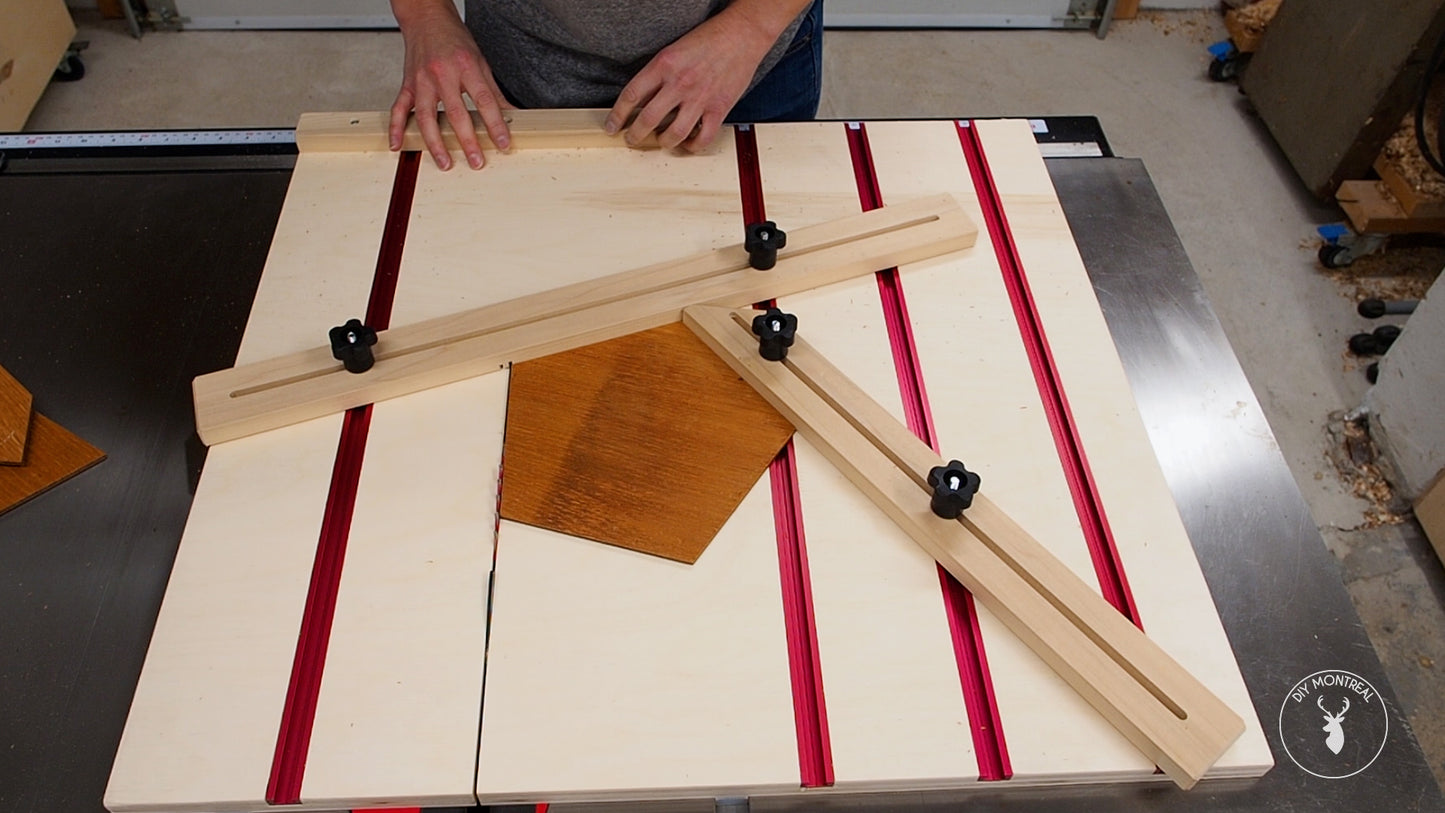

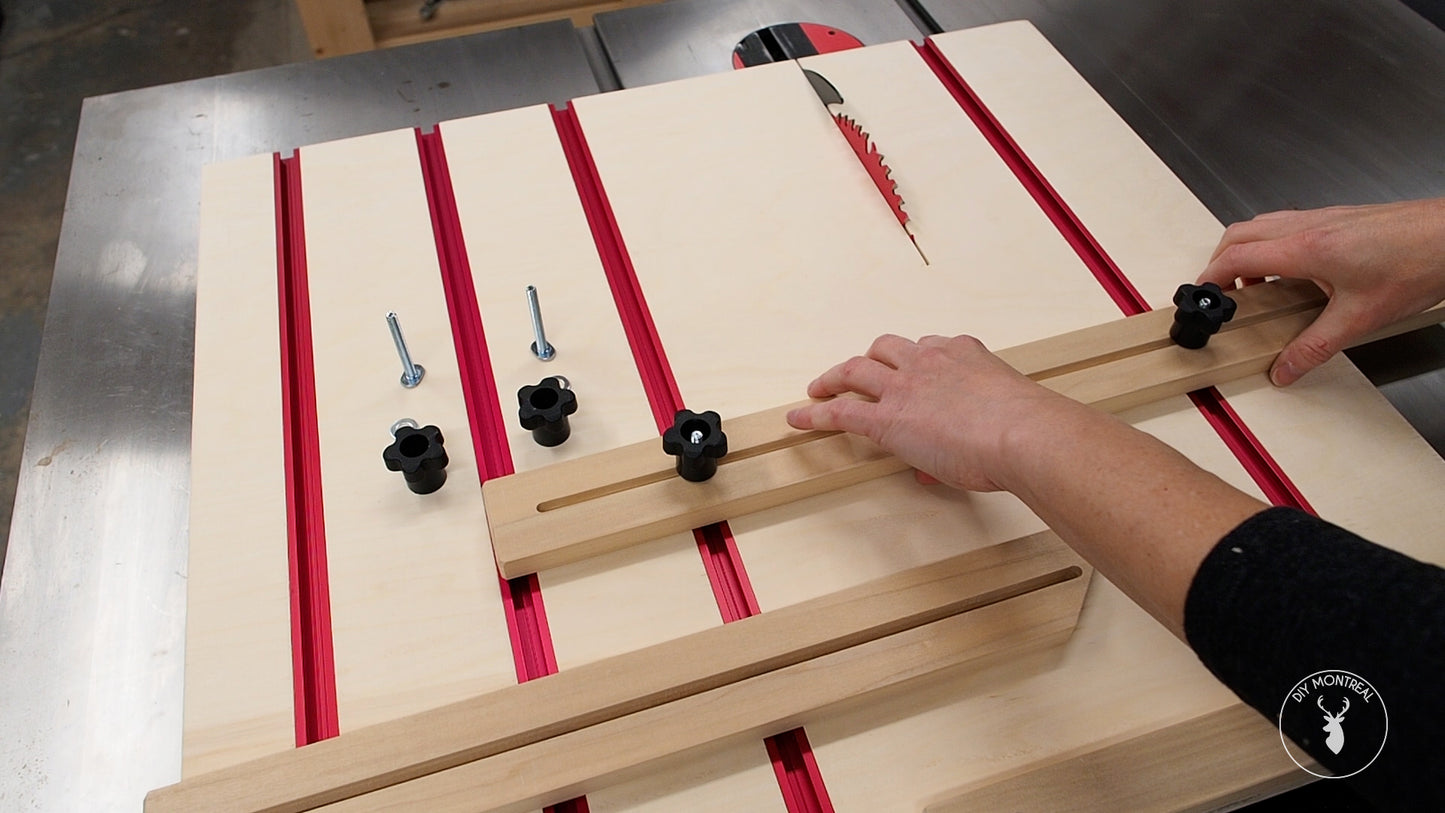

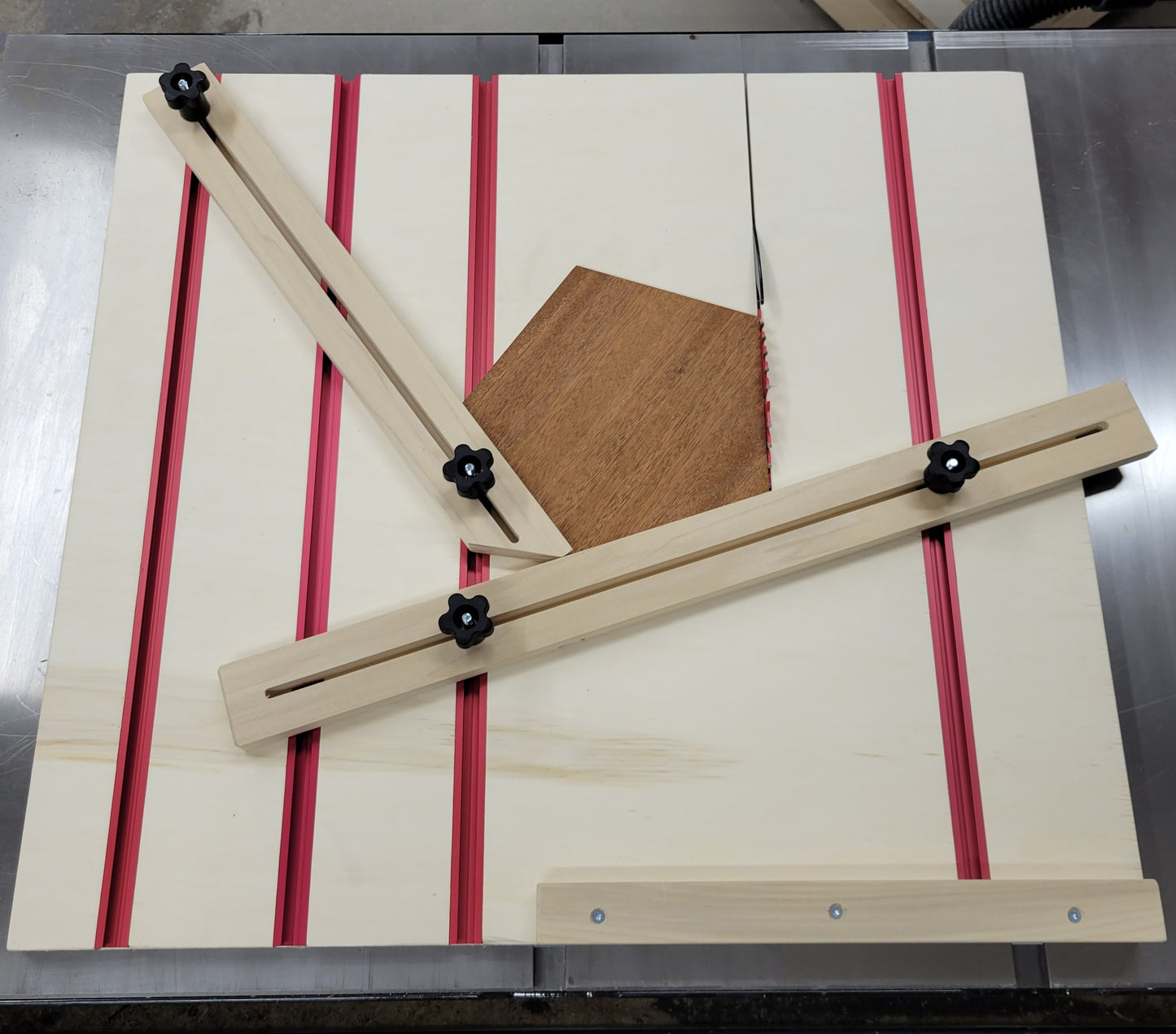

A few years ago I built a hexagon cutting jig. It’s adjustable and can cut out hexagons any size. I have plans available for the hexagon cutting jig but I get a lot of requests for either a pentagon jig or an octagon jig. So, instead of building a dedicated jig for each shape, I designed this polygon cutting jig. With this jig, you can cut any geometric shape you want on the table saw, big or small. Cut a pentagon, hexagon, octagon or even a heptagon.
These downloadable plans include 9 pages of detailed information including: dimensions, cut list, 3D assembly diagrams, materials lists, step-by-step instructions, tips and other resources (including the angles required to cut various geometric shapes).
The full list of tools and materials recommended for this build can be found in the project tutorial.
The plans are designed to be used in combination with theYouTube videowhich provides step-by-step instructions.
Jig dimensions: 26″ x 24″
*Measurements in the plans are imperial, not metric. **Nothing will be mailed to you; digital plans can be downloaded immediately after purchase.
