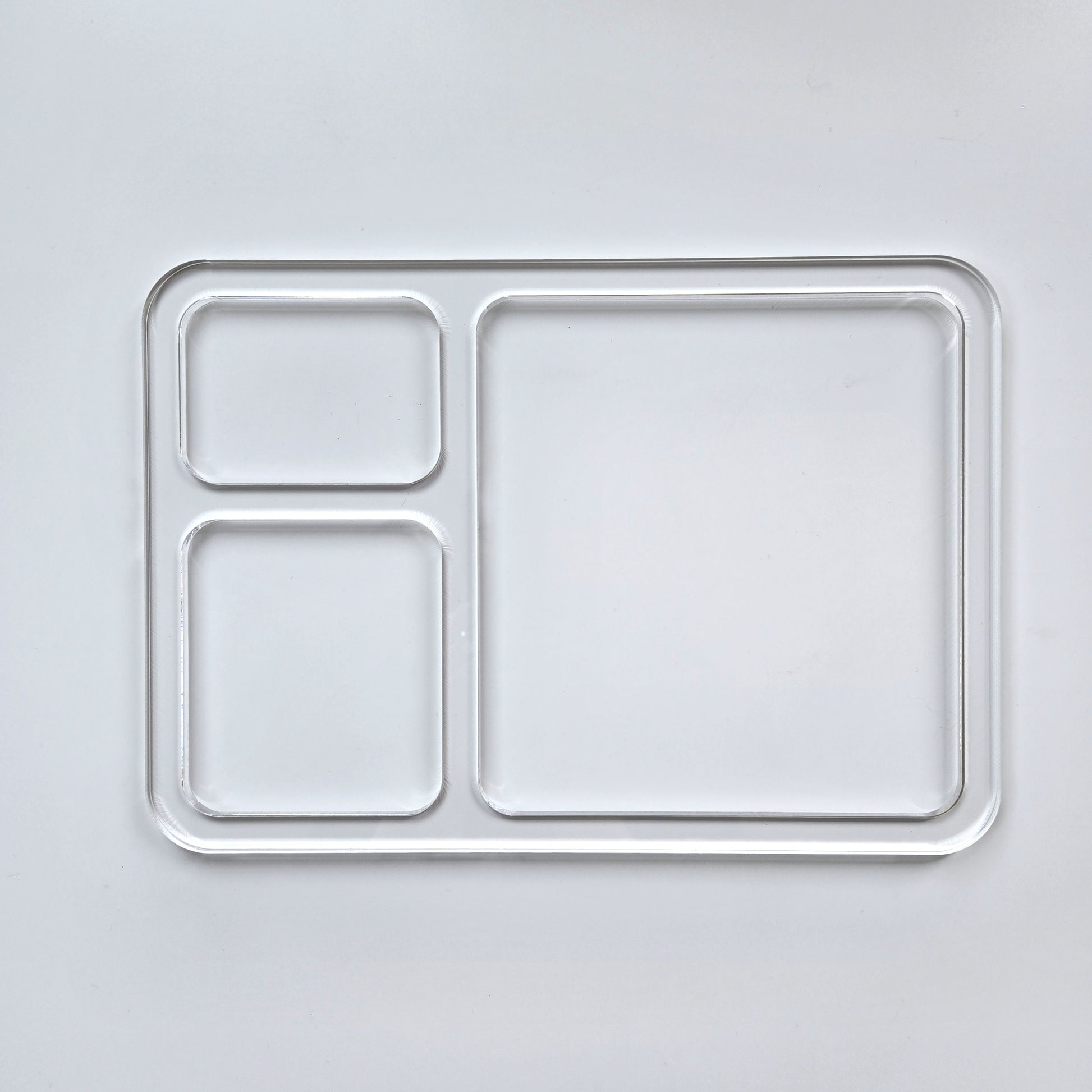

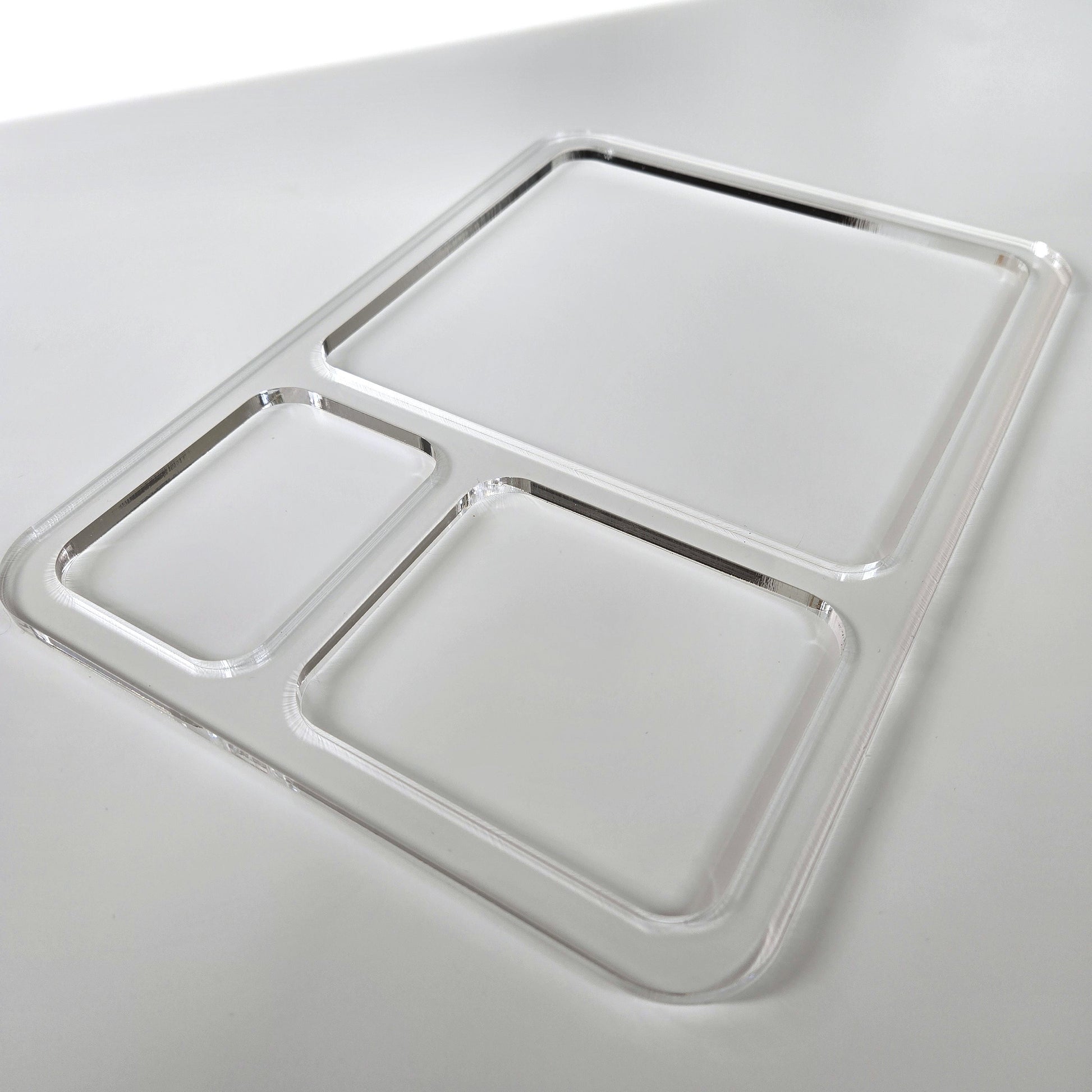

Valet Tray EDC Catch-all | Rectangle 3-pocket (S-M-L) | Acrylic Router Template

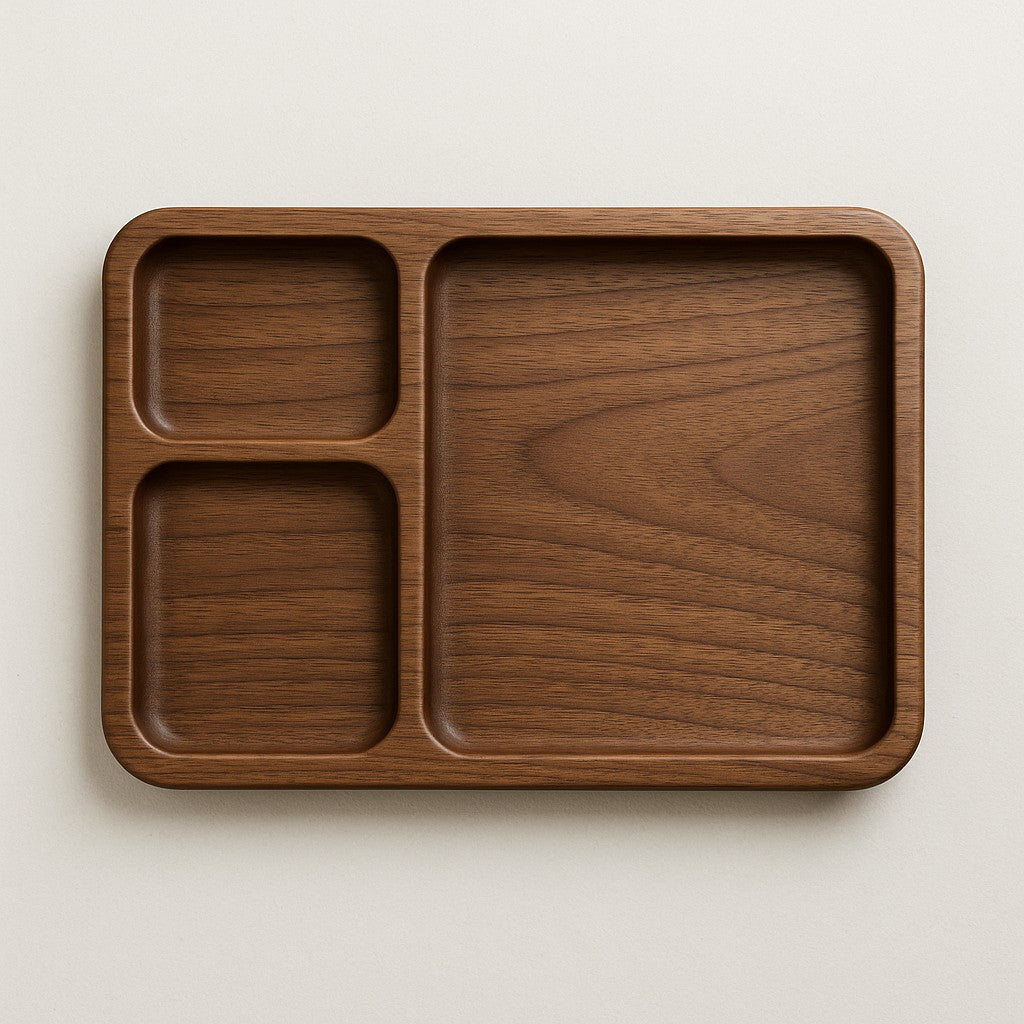

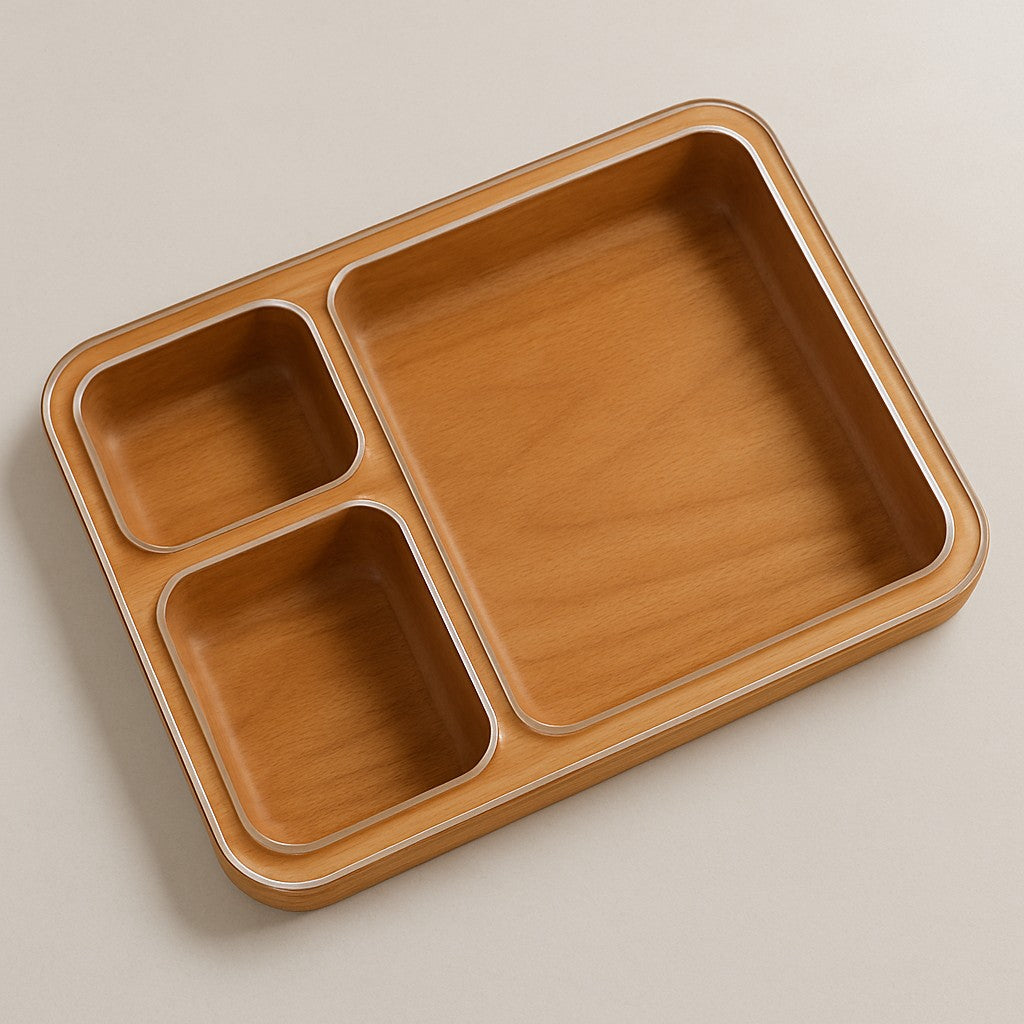

This laser cut acrylic router template is perfect for anyone looking to make Valet Trays or EDC Trays out of wood. The template features 3 rectangular pockets, one large, one medium and one small.

Dimensions:

• Template is roughly 11.5″ x 8″
• Large Pocket: 6.5″ x 7″ / Medium Pocket: 3.5″ x 4″ / Small Pocket: 3.5″ x 2.5″
• Border is 0.5" wide

Material: Template is made from 6 mm thick clear cast acrylic

Reusable template: This template can be reused if removed carefully and used with this double-sided tape (which won’t damage the wood or leave any residue).

How to use:

• Secure the template to your board using this template tape
• Use a router bowl & tray bit to carve out the inside compartment
• Cut away the excess wood around the template using a bandsaw or jigsaw, leaving 1/8″ material or less outside the line
• Use a flush trim bit mounted in your router table to follow the template and finish shaping the serving tray
• Round over all the edges using a roundover bit

Recommended tools:

• This router template
• Handheld router and router table
• Template tape
• Router bowl & tray bit
• Roundover bit
• 1/4 inch spiral flush trim bit
